TrueLok Elevate

Transverse Bone Transport System

The Transverse Bone Transport device technique, recently rediscovered by surgeons around the world after being developed by Prof. Ilizarov in the 1980s, continues to gain recognition globally among surgeons treating bony and soft tissue deformities. TrueLok™ Elevate represents an optimal solution for anyone wishing to adopt this type of surgery, thanks to its versatility and the specifically designed instruments that make the procedure fast and reproducible.

Features & Benefits

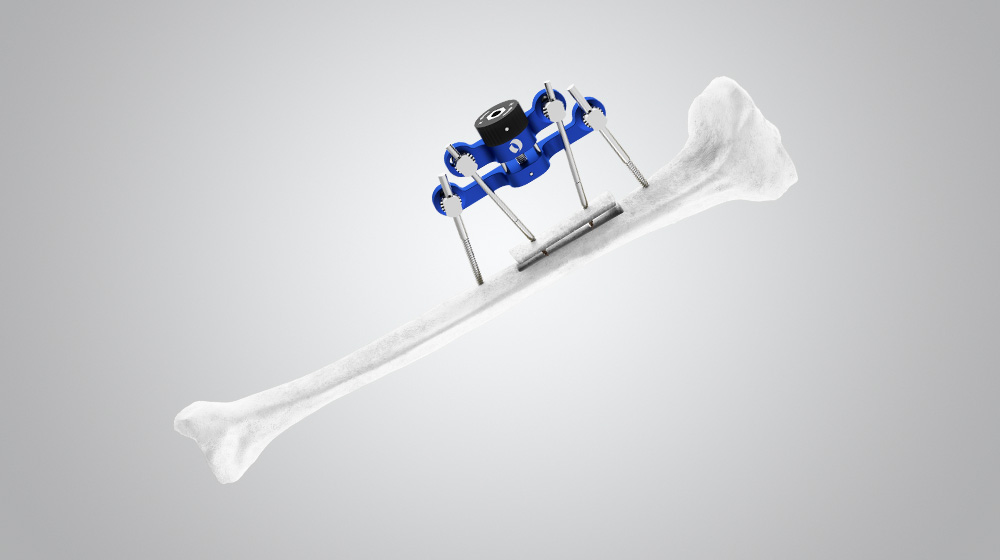

The TrueLok Elevate (TL Elevate) Transverse Bone Transport System (TL Elevate) consists of a device that is connected to the bone by means of half pins. It can be used as a standalone device (Fig. 1) or it can also be used in combination with circular external fixator (one or two rings) to create hybrid frames.

The circular fixators used with TL Elevate can be the TrueLok, the TL-HEX™ TrueLok Hexapod System and the TrueLok EVO.

To distract the bone segment, the knob of the device shall be pulled and rotated counterclockwise (following the direction of rotation indicated by the arrow marked on the knob device).

Every quarter of a turn the knob returns pushed in contact with the bar. To activate it again, the knob shall be pulled and rotated as previously described.

During each turn (counterclockwise) the number of dots (from 1 to 4) aligned with the Orthofix logo will increase.

Contrarily, to compress the bone segment, the knob of the device shall be pulled and rotated clockwise.

Every quarter of a turn, the device moves the bone segment of 0.25mm from the previous position.

Benefits to Surgeon

  • The TrueLok Elevate system offers functional components that are easy to connect, align and operate
  • The TrueLok Elevate distractor requires only one simple motion (pull&turn) to effect adjustments
  • The connection elements avoid undesired rotations and components loosening during treatment
  • Versatility and modularity offered by a comprehensive external fixation system
  • Full control of bone segment, allows precise movement without compromising stability
  • Ready to use: dedicated packaging and sterile sets
  • Dedicated template for bone corticotomy included in the packaging allowing the surgeon to have a precise reference during bone cuttin

Benefits to Patient

  • Light construct
  • Easy access for pin and incision site care
  • One mechanism to activate the device
  • Easy adjustment: simple pull and click method for patient adjustment
